Security control and search room

DISTRIBUTION CENTERS

OVERVIEW

At Nike, our security team is committed to making sure all our places, especially our Distribution Centers, are secure and safe environments. We focus on security to build trust and keep everyone safe in a welcoming environment.


The Security Space types consist of two distinct spaces:

1. Security Control Room​: an enclosed space designed to monitor the building 24/7

2. Search Room​: a space for conducting searches

Design Goals

  • Co-locate Security Rooms at the primary entrance of a building. These are enclosed centralized space for 24/7 building monitoring.
  • Locate these spaces adjacent to the secure lines. Access is required from both the public and secure workspace. See diagram on Entry and Exit.
  • Ensure dual access from both sides of the secure line.
  • Design a Security Control Room control room layout that includes a large control desk with ample space for multiple monitors
  • Collaborate with the security team to design these spaces
  • Install a badge reader for secure access for these spaces
  • Ensure that in a campus with multiple primary entrances, each building has Security Control Room and Search Room spaces

Key Components

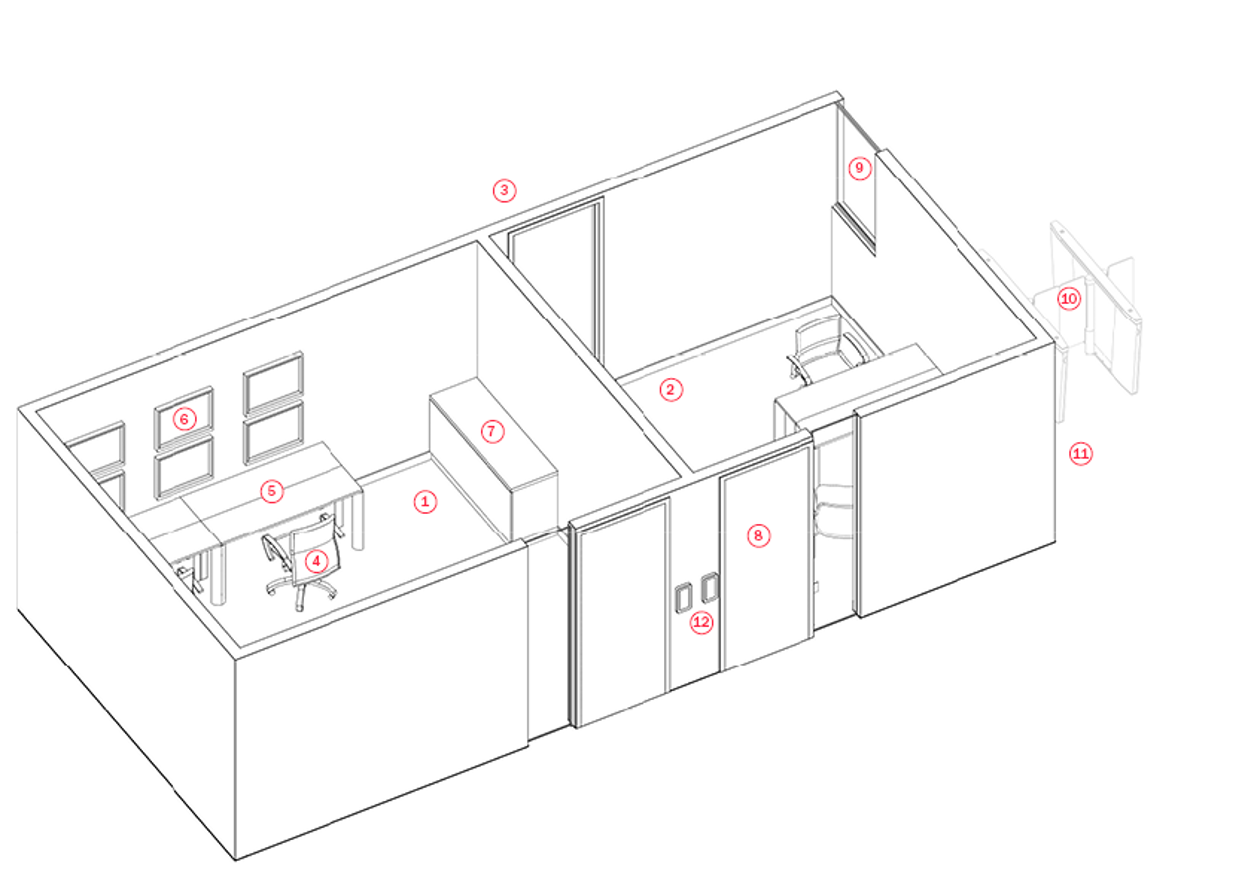

isometric drawing indicating security & control room key components

Download PDF and BIM files below


Download Drawings BIM Folder
  1. Security Control Room
  2. Search Room
  3. Direct access to Lobby
  4. Ergonomic chairs
  5. Sit-to-stand desks
  6. Security monitors on wall
  7. Lockable storage
  8. Door
  9. Half height glazing for visibility (optional)
  10. Security turnstiles
  11. Access to secure workspace (beyond secure line)
  12. Access door control


Area: Security Control Room approximately 196 SF (18 SM). Search Room approximately 152 SF (14 SM)

Size: Security Control Room: 12' - 6" x 15' - 7" (3.8 x 4.75m) min. Search Room: 12' - 6" x 12' - 2" (3.8 x 3.7m) min.

Capacity: Dependent on project, team size and number of security personnel required.

REQUIRED SPECIFICATIONS

  • Clearances
    • 42" (107cm) min. clearance at table for seating
    • 36” (91.5cm) min. clearance for circulation without seating
    • 60” x 60” (152.5cm x 152.5cm) clear floor space on each side of all swing doors
  • Finishes

    Walls

    • Wall type 1: Gypsum wall to deck
    • Wall type 2: Glazing wall
    • Paint with rubber base (or equivalent)
    • No acoustic wall covering.
    • Interior glazing to match the height and width of the door

    Floors

    • Carpet tile (or equivalent)

    Ceiling

    • Suspended ACT (or equivalent)
    • Height not to exceed 10’ (3m)
  • Doors
    • Standard size door
    • Type: solid panel, swing
    • Standard door opening based on region, min opening, 32" (81cm)
    • Threshold: 0.5" (1.3cm) height
    • Handle: Metal lever-style, without lock 

  • Furnishings

    Furniture


    Ergonomic sit-to-stand desk

    • Electric, adjustable height with min. range 25”-48” (63.5cm-122cm) height, 3 phase motor is typical to achieve this range
    • Finishes: Top in (A) solid wood or (B) solid color laminate with exposed MDF core at the edge. Black or white powder coat base
    • Size: 30” (76cm) width, 60” (152cm) length. May vary by Geo
    • Height switch with digital display, located to avoid accidental contact
    • Knife-edge at front preferred. Metal trough for wire management preferred, making modesty panel unnecessary.(x4) pack preferred. (x2) or (x6) optional
    • Avoid clip-on power units
    • Confirm monitor mounting, if multiple monitors to be mounted to desk, confirm weight/load can be managed by desk motor

    Ergonomic monitor arm

    • Adjustable both front-to-back and to eye-level height. The position is stable with the weight of the monitor.

    Ergonomic task chair

    • Fast, easy, and intuitive adjustments. Integrated or manual lumbar support
    • Seat height: Adjustable, 15”-22” (38cm-56cm) min. height
    • Seat pan: Adjustable, 15”-19” (38cm-48cm) min. depth
    • Mesh back, 5-star casters for carpet, height adjustable arms
    • Avoid plastic edge below the knee
    • Passive tension preferred
    • Ability to change to a tall or short cylinder for people outside the adjustable range
    • Finish: Gray fabric/mesh/base is preferred
    • Avoid arms that move in multiple directions
  • Acoustics
    • Voices can’t be heard outside of the room and vice versa
    • Noise criteria (NC): 30-35 dBA
    • Sound transmission class (STC): 45-50 dBA

  • Equipment
    • Secure storage for equipment
  • Electrical

    Outlets

    • Power at a desk for motor, monitor, and desktop outlets.  No floor boxes
    • Provide (x2) min. outlets at a desk, with easy access to plugin laptop chargers. Conceal wires below the surface
    • Provide grommets and access to power within 24" (61cm) of the edge of the table
    • Two electrical outlets above desk for laptop and peripheral charging
    • One electrical outlet below desk for monitor
    • No hardwire Data. Users will use Wi-Fi
    • Review with local Nike Tech team

    Lighting

    • Lighting and other controls should be mounted between 44”-48” (110cm-122cm)
    • Range: Up to 30 FC (323 LUX)
    • Controls: On/off with sensor

  • Wayfinding
    • See Wayfinding section
    • ID sign with the room type outside the door (‘Custodial Room’, ‘Utility Room’ or relevant local term)
    • Allow for wayfinding signage adjacent / on door
    • If door is to be glazed - manifestation applicable according to local guidelines

  • Branding
    • To be validated with design team
  • Technology
  • Safety and Security
    • Access controlled, (x1) badge reader, programmed with limited employee access
    • For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources
    • The suitability of the structure of the control room to withstand possible major hazards and events
    • The doors, door frames and locking hardware should provide protection against force attack
