WELLNESS & MULTI-FAITH ROOM

OVERVIEW

Private space to support rest and recovery.


Wellness rooms encourage balance and wellbeing for employees with a private space designed to support breaks for physical or mental health. The design allows people to step away from their work and sit, stretch, or lay on the floor or sofa. A sink is helpful for some prayer practices or to freshen up.


This is separate from the mothers’ room, except in offices with less than 75 headcounts, where the two can be combined.

Design Goals

  • In buildings that have public amenities, locate in a public space, outside the secure perimeter in discreet location and entrance.
  • Share plumbing wall with restrooms or other plumbed spaces when possible. Separate access to the sink area.
  • Architecture and brand are interchangeable with the single-user mothers’ room.

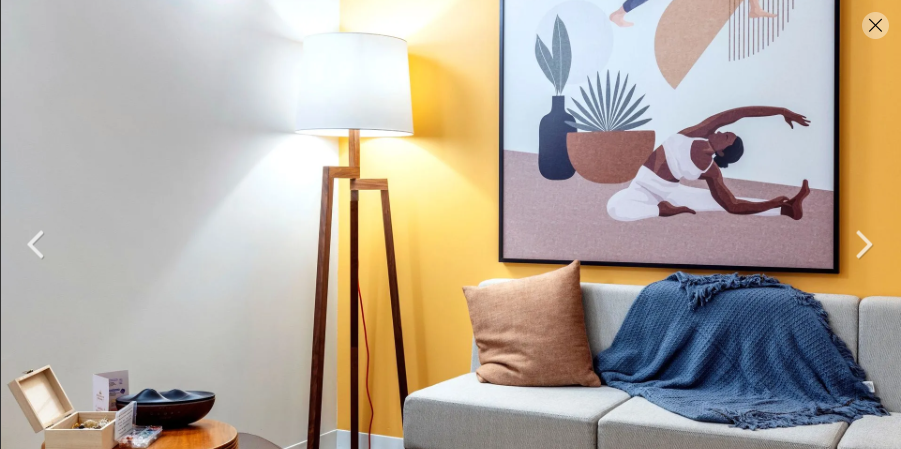

Los Angeles, USA

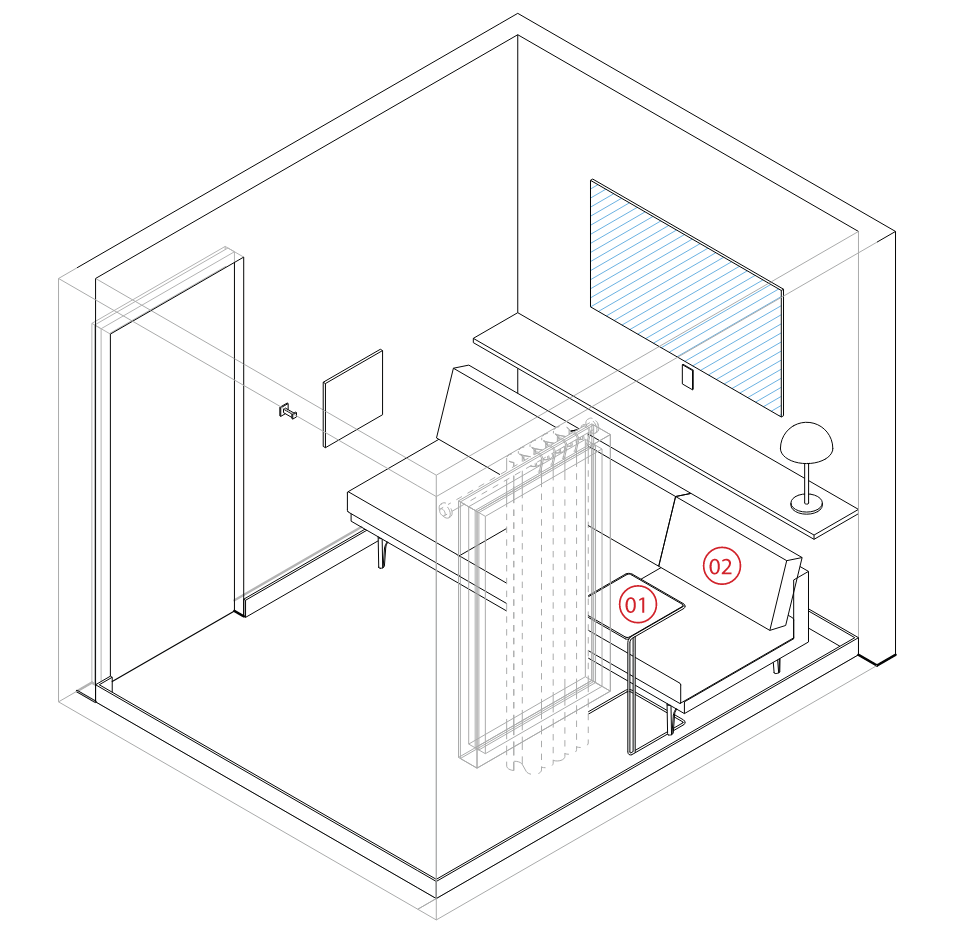

Key Components

Download PDF and BIM files below


Download Drawings BIM Folder
  1. Comfortable seating
  2. Surfaces to set personal items



Area: 125 SF (11.6 SM)

Size: 13'-0" x 9'-6" (4m x 2.9m) +/- 18” (46cm)

Capacity: 1

Branding

Wellness and multi-faith rooms are for inward focus and should feel inviting to everybody. Brand applications should be understated, with calming wall color and graphic artwork that is consistent with the larger workplace environment, but provides a neutral and restful retreat from the activity outside. Avoid bold or saturated colors that might feel aggressive or jarring to occupants, and be careful to curate graphic content that does not provoke strong feelings. It is usually best to avoid bold logos and brand quotes, as well as athlete imagery or artworks showing people's faces.


Cost guardrail for brand investment: Low level

REQUIRED SPECIFICATIONS

  • Clearances
    • Ensure wheelchair turning radius and accessible door clearances are met in both sink and lounge areas. 60” (152cm) is the minimum turning circle clearance, but 75” (190.5cm) is better for all mobility device users when possible
  • Finishes

    Walls

    • Wall type 8: Gypsum wall below deck
    • Use standard wall types or approved alternate that meets acoustic requirements
    • Paint and rubber base (or equivalent)
    • Accent color on all walls is typical. Choose paint color with furniture and brand in mind
    • Must provide privacy film and/or window coverings. Curtains can add a welcoming feel

    Floors

    • Cleanable flooring for wet locations required at the sink
    • Consider selections with a softer aesthetic than open workspace etc. (wood, textured carpet tile, etc.). If an area rug is used, adhere it to the floor and provide transition strips at all edges to minimize tripping hazards

    Ceiling

    • Height: 8’-10’ (2.4m-3.1m)
    • Suspended ACT (or equivalent), wall-to-wall (NRC 0.5+)
  • Doors
    • Type: Swinging with 3 hinges
    • Size: 36” x 80” (91cm x 203cm) or off the shelf size without customization
    • Solid core. Metal lever-style, accessible handle
    • Lock: Deadbolt with occupancy indicator at the lounge door. Coordinate with security.
  • Furnishings

    Furniture


    Sofa

    • 3-seat size to allow for a reclined position
    • Consider using Mothers’ room spec for consistency. Throw pillows should not have down fill to reduce allergic reactions

    Laptop table

    • Accommodate drink and phone for meditation app etc. A second table can be substituted for a counter in the lounge area
  • Casework and Plumbing
    • Laminate counter with exposed plywood or laminate cabinets
    • Counter and storage cubbies at the sink. A counter in the lounge area
    • Ensure accessible height for all devices and furniture, and front approach clearances for all casework
    • Drop-in sink, side-mounted faucet, no sensor.
  • Acoustics
    • Noise should be dampened between the room and adjacent spaces, but privacy isn’t required
    • Noise criteria (NC): 30-35 dBA
    • Sound transmission class (STC): 45-50 dBA
  • Equipment
    • At sink area include: Counter mounted soap dispenser, mirror, small trash bin, recessed paper towel dispenser. Sharps bin and first aid kit
    • In sink area include: tack or magnet board. Basket for disinfectant wipes, tissues, supplies, etc.
    • In lounge area include:
    1. Tack or magnet board, coat hook (install with toggle bolt - include an option for wheelchair accessible height), and hanger
    2. Table or floor lamp, floor basket, muscle recovery device, meditation pillow, yoga mat, blanket, sound machine. Consult the local service team
    • HVAC: Include temperature/ventilation. Avoid drafts directly over seats
  • Electrical

    Outlets

    • Wall outlets at accessible heights above and below counter at the sink, and easily accessible in the lounge area

    Lighting

    • Range: 20-40 FC (215-430 LUX) at 30” above the floor
    • Controls: Daylight harvesting or user dimmable
  • Wayfinding
    • See Wayfinding section
    • ID sign with ‘Wellness Room’ outside the door
    • Amenity Icon Tab
  • Branding
    • All painted elements should be easy to clean and resistant to food spills or normal wear.  Low VOC paints should be used whenever possible.
    • Wallpaper should be non-vinyl wall covering such as DreamScape Terralon
    • Furniture painted with brand colors should be powdercoated for durability.
    • Custom furniture or upholstery should follow CAL 133 or other local flammability standards
    • Framed graphics are typically Silicone Edge Graphics (SEG’s)
  • Technology
  • Safety and Security
    • For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources

Examples

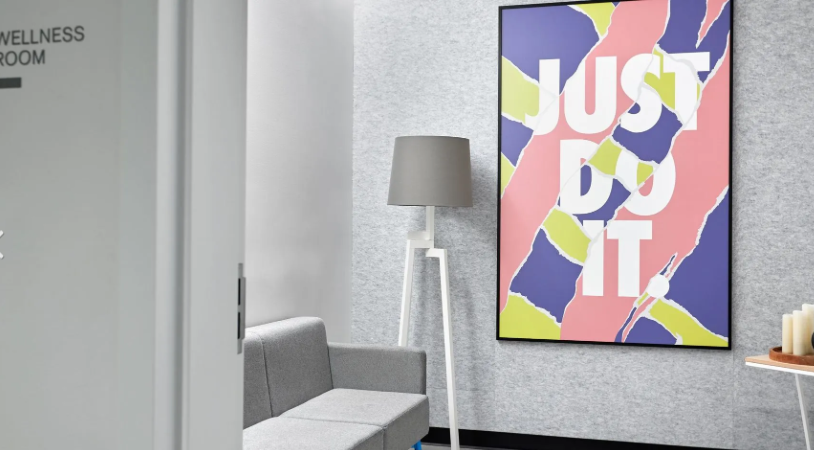

Image Of Campus Site

PHK - Beaverton, USA

Quiet Branding

Framed artwork with core Brand messaging in soft tones provides a focal point without eliciting a strong emotional response.

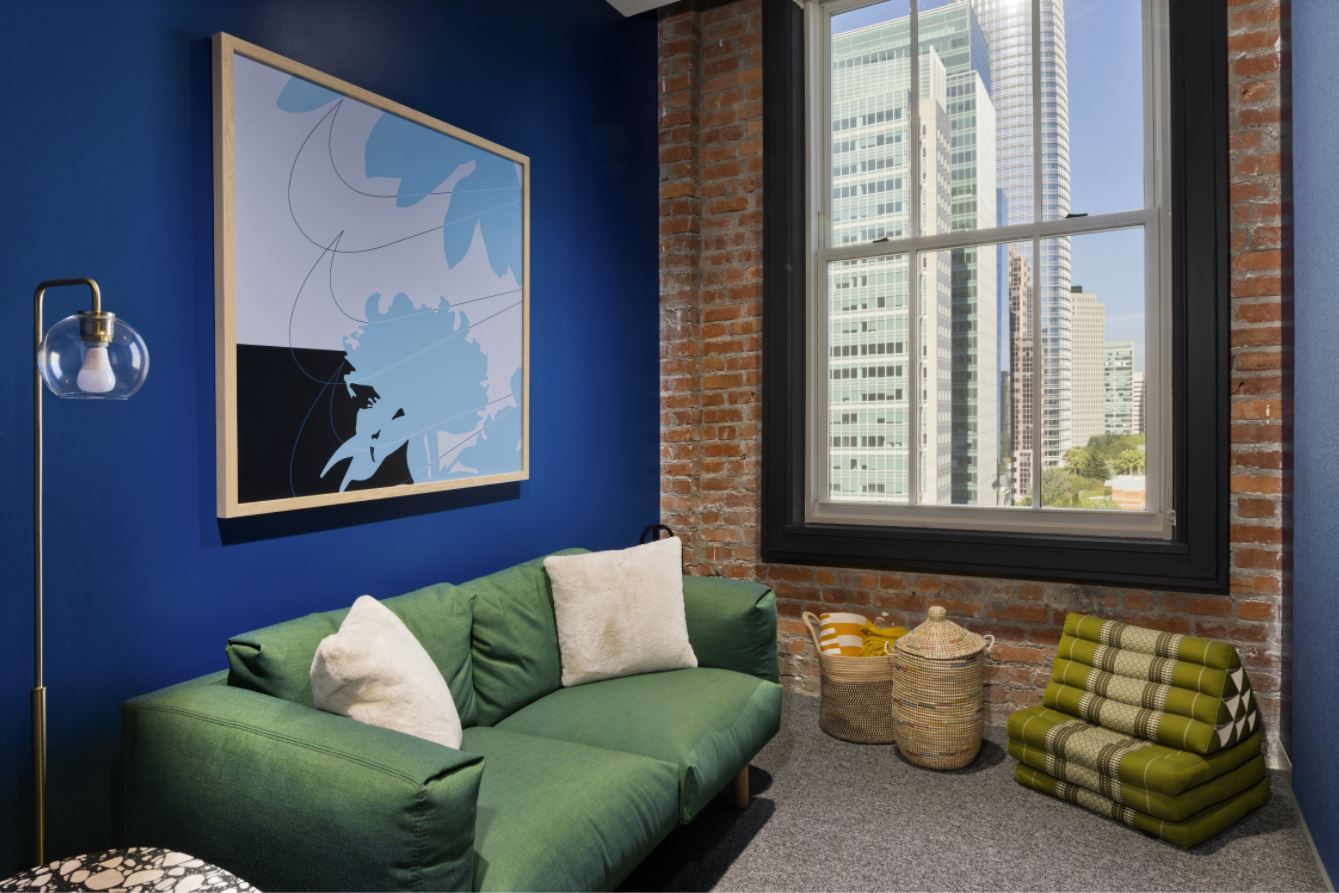

San Francisco, USA

Calm Color and Lighting

Warm, natural tones are complemented by a simple, abstract textural wall graphic that gives a human touch without demanding attention. Dimmable lighting allows the environment to be tuned to the user's needs. Local service teams are encouraged to provide accessories and amenities.
