Recovery Zone

DISTRIBUTION CENTERS

OVERVIEW

The Recovery Zone is a non-bookable dedicated area for Shopfloor employees to engage in relaxation, mindfulness, and self-care activities.

Design Goals

  • Locate near the Shopfloor perimeter for convenient access during shift breaks, while strategically situating them away from main circulation route to create a more calming experience
  • Space may exist within a closed room or partially open environment
  • Provide soft finishes to create a welcoming, calming, and stress-free environment
  • Avoid creating multiple Recovery Zone spaces within the building; for availability, it’s easier for people to go to one location
  • Install comfortable reclining seats or massage chairs (if budget permits)
  • Incorporate curtain or dividing screens between open areas as needed
  • Encourage natural light wherever possible in this space
  • Flexibility to adjust setup for logistics operational efficiency
  • Space is separate from the Wellness Room

Key Components

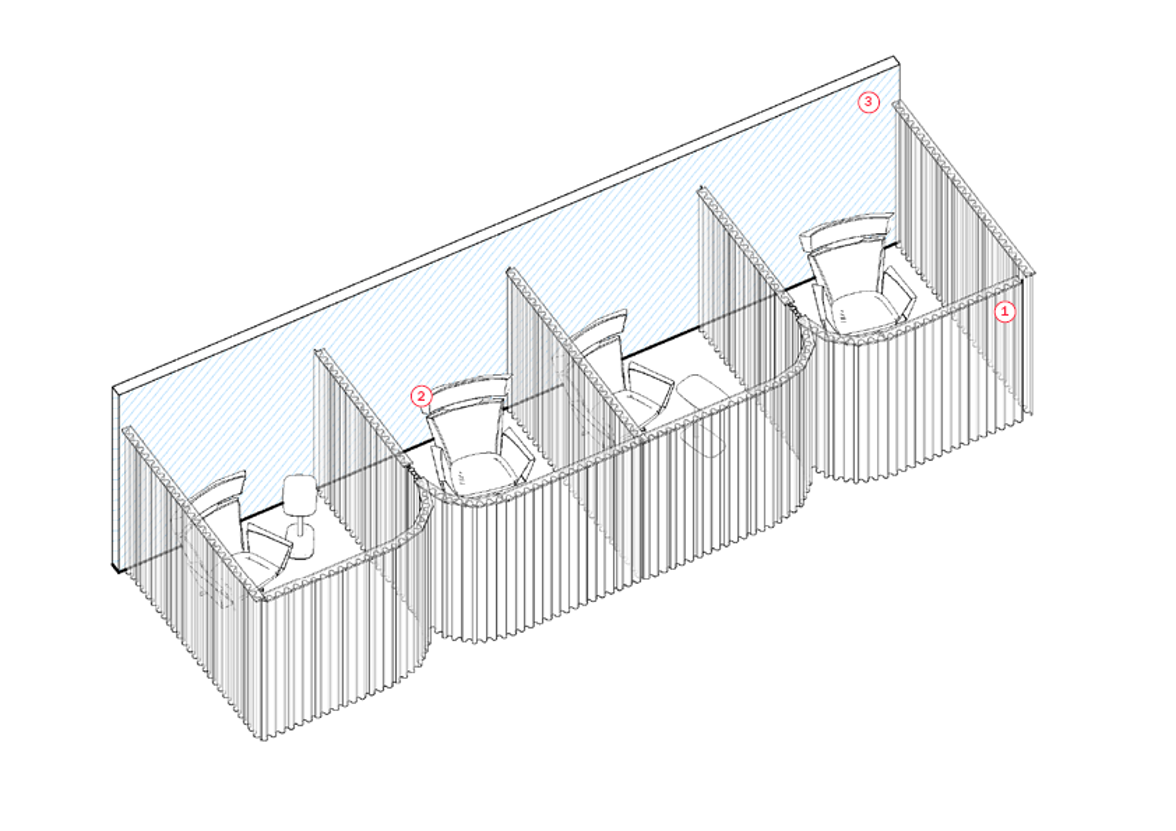

recovery zone axonometric

Downloads PDF and BIM files below


Download Drawings BIM Folder
  1. Curtain screening
  2. Relaxing and comfortable seating (recliner)
  3. Accent wall


Area:  Pod: 24 SF (2.2 SM)

Size:  Varies. Pod: 6’ x 4’ (1.8m x 1.2m)

Capacity:  As many pods as needed to meet standard. Each pod has a capacity of 1

REQUIRED SPECIFICATIONS

  • Location
    • Ideally located on the Shopfloor with the back of the chair against a wall for additional privacy
  • Clearances
    • 36” (91.5cm) min. clearance for circulation without seating
    • Circulation should be 36” (91.5cm) min. wide
    • Ensure accessible height for all devices and furniture, and front approach clearances for all casework
  • Finishes
    • When these spaces are located on the Shopfloor (near the Breakroom or Coach Zone), minimal fitout works to ceiling and floor required

    Walls

    • Use standard wall types or approved alternate that meet acoustic requirements
    • Optional to have stalls open to the ceiling
    • Acoustic wall covering where possible

    Floors

    • If an area rug is used, adhere it to the floor and install transition strips at all edges to minimize tripping hazard
  • Furnishings

    Furniture


    Lounge chair

    • Deep or reclined seats so employees can relax or take a quick nap, allow for a reclined position
    • Faux leather or material that can be wiped clean
    • Comfortable for various body types

    Laptop table

    • Laptop table within reach of seating, accommodates drink and phone
    • Table or floor lamp

    Window Coverings

    • Provide a semi-opaque privacy curtain on a track to enclose space
  • Acoustics
    • Minimize sound transfer for privacy
    • Noise should be dampened between adjacent spaces, but privacy is not required
  • Equipment
    • Consider servicing these spaces where there is demand and if budget allows – i.e. serviced massage chair during shift break hours.
    • HVAC: Include temperature/ventilation. Avoid drafts directly over seats

    Include

    • Coat hook (install with toggle bolt - include an option for wheelchair-accessible height) and hanger
    • Table or floor lamp
  • Electrical

    Outlets

    • Wall outlets at easily accessible heights for users

    Lighting

    • 20-35 FC (215-375 LUX) at 30” (76cm) above finished floor – a lower overall level, with lamps for individual adjustment
  • Wayfinding
    • See Wayfinding section
    • ID sign with space name
    • Amenity Icon Tab
  • Branding
    • Branding should not interfere with cabinetry or other functional features in this space
    • Soft and neutral branding should be used that complement the conservative nature of these space types
    • Avoid bold quotes, athlete photography, or aggressive feeling graphics
    • Accent paint background - specify with architectural finishes. Select a soft, calming color
    • Consider providing a QR code for people with low/no vision
  • Technology
  • Safety and Security
    • For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources

Relevant Links

Nike Accessibility and Inclusion Checklist for accessible requirements

View Checklist
