OVERVIEW

Accessible and inclusive for everybody.


Nike’s offices reflect that we value diversity in all our locations. We strive to provide a balance of restroom choices that are inclusive and convenient for all employees and guests, including at our leased sites. The addition of a single-user everybody restroom is in the cost guardrails. Additional funding is required to renovate restrooms beyond that scope.


The name Everybody has been developed with the Pride and Disability networks to indicate restrooms that are all-gender and accessible. It is a nod to Bill Bowerman’s quote “if you have a body, you are an athlete*”.


Learn more about inclusive restrooms.

Inclusive Restrooms

Design Goals

  • Re-use existing restroom locations or locate near the existing plumbing core. Locate near the custodial closet if possible.
  • Everybody restrooms can be single-user or multi-stall. Distribute choices (single-user vs. multi-stall, Everybody vs. gendered) throughout the building for easy access, while using consistent locations for easy wayfinding.
  • Provide direct access to Everybody restrooms (NOT through a gendered space, area with restricted access, etc.).
  • Multi-stall Everybody restrooms: The entrance to the shared space should be open with no door. Full-height walls and locked doors separate toilet stalls.
  • For privacy, shield line of sight into restrooms from adjacent spaces.
  • The restroom design should use functional, durable materials; keep the aesthetic clean and timeless.
  • Allow enough space for someone providing assistance to the user in accessible and Everybody restrooms.
  • Music in multi-user restrooms adds ambiance while masking restroom noises.
  • If showers are provided, include an all-gender, accessible option; this can be combined with a single-user restroom.
  • DC’s should have primarily male and female multi-stall restrooms. Include at least one single-user Everybody restroom with each male/female restroom group.

Multi-User Everybody Restroom, PHK

Key Components

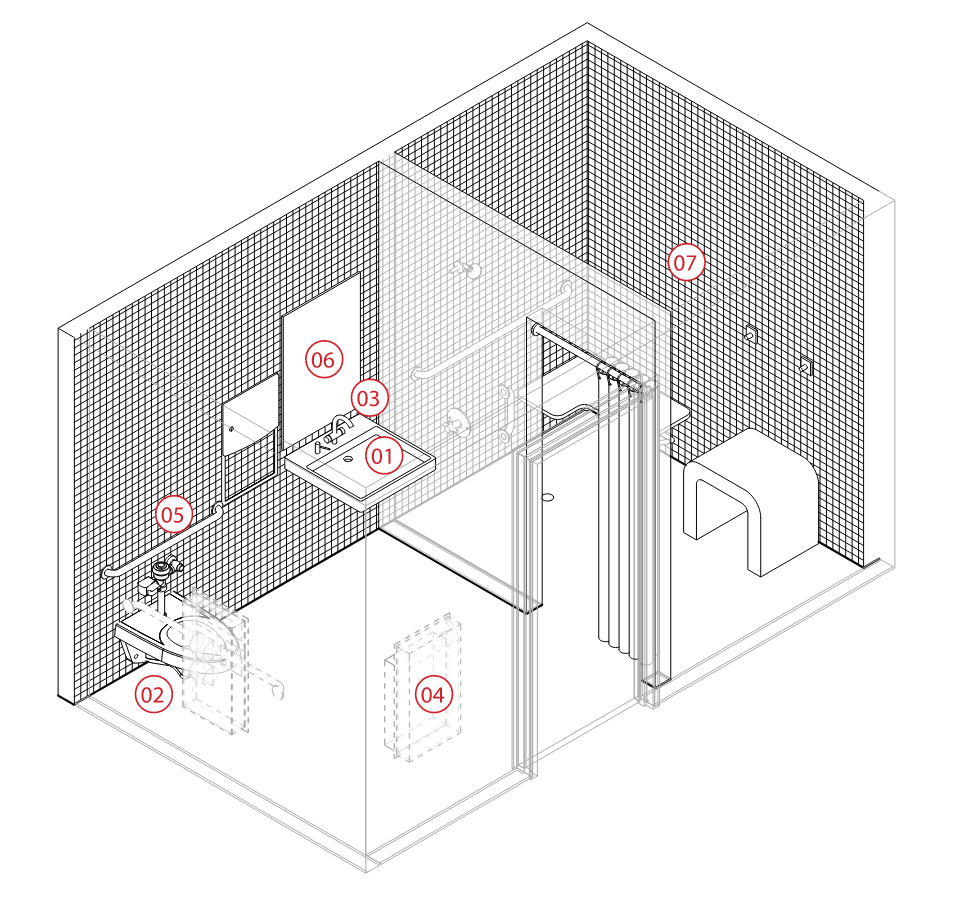

Restroom axonometric

Download PDF and BIM files below


Download Drawings BIM Folder
  1. Sink
  2. Toilet stall
  3. Automatic faucets
  4. Automatic hand drying system (towel or air)
  5. Grab bars at accessible toilet
  6. Mirror
  7. Accessible shower


Area: Determined by local team

Size: Determined by local team

Capacity: Determined by local team

Branding

Brand opportunities in restrooms are limited. Embed storytelling with color and material selections, and with custom tile configurations when budget permits.


Cost guardrail for brand investment: Low level

REQUIRED SPECIFICATIONS

  • Clearances
    • 60” (170cm) min. turning circle near door or sink
    • Clear floor space: 32" x 54" (81.5cm x 137cm) min., front approach at sink, front or side approach is acceptable at towel dispensers and waste bins

    Accessible toilet stall/compartment

    • All single-user restrooms should be fully accessible, (x1) min. in each multi-stall restroom
    • Size: 60” x 60” (152cm x 152cm) min.
    • Toilet paper dispenser: 42" (107cm) max. from rear wall
  • Finishes

    Walls


    Toilet stall partitions – gendered multi-user

    • Type: (A) Gypsum wall, full height or gap at the ceiling -or- (B) Metal partition, floor mounted, powder coat
    • Height: 64" (163cm) min.
    • Metal partitions: floor opening 12” (31cm) max., include privacy fillers to eliminate gaps
    • Urinal partition: Determined by project team
    • Sanitary napkin/tampon disposal bin: in each stall



    Toilet stall partitions – all-gender multi-user

    • Type: Gypsum wall, full height
    • Stall door: Full height, 2” (5cm) max. gap at the bottom
    • Sanitary napkin/tampon disposal bin: in each stall

    Floors

    • Slip resistant
    • Material appropriate for wet conditions
    • Color to contrast with floor for clear distinction between surfaces

    Ceiling

    • Gypsum
  • Doors
    • Type: Solid core, swing, 3 hinges
    • Size: 36” x 80” (91cm x 203cm) preferred; if not feasible, 32” (81cm) min. clear opening
    • Threshold: 0.5” (1.27cm) max. height
    • Clear floor space: 60” x 60” (152.5cm x 152.5cm) min. on each side
    • Accessible push-button door opener
    • Handle: Lever or u-shape that can be opened with a fist or loosely gripped
    • Seals at head and jambs, no gap at the door when adjacent to loud spaces
    • For multi-user all-gender restrooms: No door into the shared space
  • Furnishings

    Accessories


    Waste bins

    • Location: Near paper towel dispensers and at door (so the paper towel can be thrown away if used to open door); ensure placement does not impede on required door clearance
    • Opening: Either no door, motion-activated door, or attached door that does not provide resistance

    Feminine hygiene products

    • Multi-user Everybody: Shelf and/or basket for supplies in each stall for discreet access
  • Casework and Plumbing

    Counter and sink

    • Open below, cover exposed pipes
    • Counter space: Min. width 24” (61cm) for multi-stall, min. 18” (46cm) for single-user
    • Height: 28"-34" (710 mm - 865 mm), for sink measure to top rim
    • Knee clearance: Min. 27" (735 mm)
    • Storage: Counter or shelf for users to temporarily place bags, near the entrance, non-wet location
    • Ensure there is enough counter space for any additional products, e.g. feminine hygiene products

    Plumbing


    Sink/Lavatory:

    • Commercial grade
    • Simple aesthetic - not something that calls for attention
    • No drain plug

    Faucet:

    • Automatic touchless sensor
    • Commercial grade
    • Under counter mount
    • Single hole, simple, modern aesthetic
    • Select one metal finish per project so soap dispenser, faucet, and other metal plumbing fixtures match.
    • Reduced water use

    Toilet:

    • Automatic touchless sensor
    • White porcelain
    • Manual flush
    • Reduced water use and/or dual flush
    • Seat with no lid

    Urinal (Men’s room only, not in Everybody restrooms):

    • Automatic touchless sensor
    • Commercial grade
    • Simple aesthetic - not something that calls for attention
    • White porcelain
    • Reduced water use
  • Acoustics
    • Multi-user restrooms only. Only applies when restroom renovation is in scope, which requires specific funding
    1. Minimize sound transfer for privacy
    2. Background music should be on during work hours
    3. Noise criteria (NC): 40-45 dBA
    4. Sound transmission class (STC): 50 dBA
  • Equipment
    • Consult the local service team for specs and requirements.
    • Accessible reach for all equipment listed: Maximum height for all operable parts: 48" (122cm) for an unobstructed reach or 44" (112cm) over an obstruction deeper than 20" (51cm), if there are duplicates, at least one should be within the reach range listed
    • Grab bars
    • Wall-mounted coat hooks: Near entrance or in each stall
    • Towel dispenser and dryer:
    1. Automatic touchless
    2. (x1) per every 2 sinks min.
    3. Recessed or projection 4” (10cm) max. from the wall
    4. Within reach of the sink
    • Soap dispenser:
    1. Automatic touchless sensor
    2. Commercial grade, under counter mount
    3. Easily refillable
    • Mirror behind sink: Bottom edge 40” (102cm) max. height
    • Full-height mirror in multi-stall restrooms and single-user restrooms with showers
    • Baby Changing Station:
    1. Provide (x1) per building min.
    2. In both men’s and women’s restroom or Everybody restroom
    3. Preferred location: outside secure perimeter
    • Toilet seat cover dispenser: include if typical for region
  • Electrical

    Outlets

    • At equipment: As needed
    • Counter: (x1) min. above counter
    • Perimeter: (x1) min. for cleaning equipment, more if needed to reach all areas

    Lighting

    • Range: 10-20 FC (107-215 LUX) at 30” (76cm) above the floor
    • Controls: On/off, sensor or programmed to remain on during business hours
    • Switches: 44"-48"  (112cm-122cm) height
    • Optional: Wall wash preferred to avoid reflection on floor and harsh shadows in mirror, recessed cove lighting at the mirror is common
  • Wayfinding
    1. ‘Everybody* Restroom’ with toilet icon
    2. ‘Men’s Restroom’ with male person icon
    3. ‘Women’s Restroom’ with female person icon
    4. Add shower icon or baby changing icon as applicable
    5. Only include a wheelchair icon if all building restrooms are not accessible
    • Amenity Icon Tab
    • Inside the room: If the accessible toilet or shower stalls are not obvious, add a wheelchair icon to the door, do not include text
  • Branding
    • All painted elements should be easy to clean and resistant to food spills or normal wear.  Low VOC paints should be used whenever possible.
    • Tile and grout surfaces should be sealed for easy cleaning.

  • Technology
    • Refer to Nike Tech standards
    • Music: In multi-stall restrooms, connect to building music system with speakers (not required for retrofitting existing restrooms)
  • Safety and Security
    • For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources

Examples

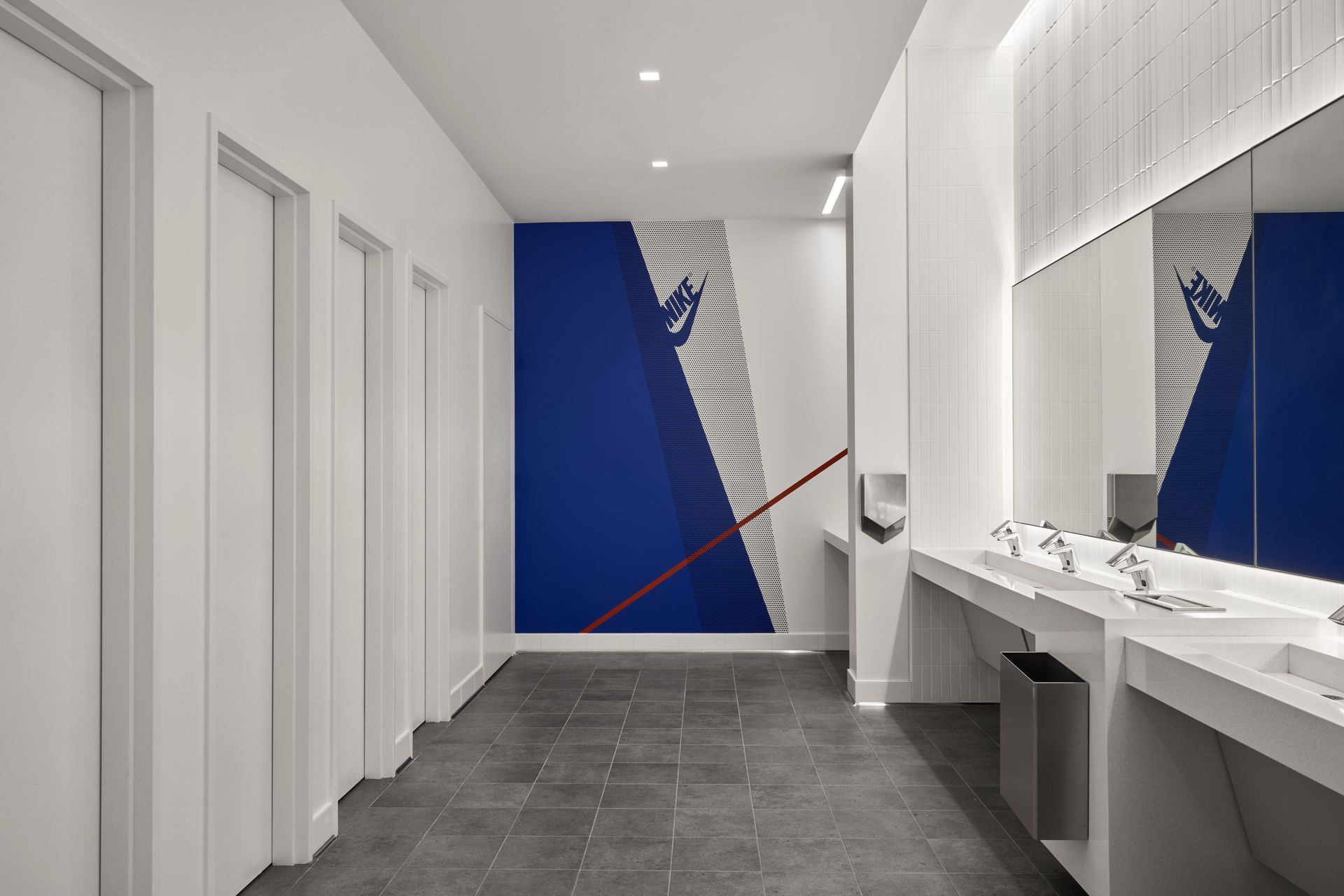

Image Of Campus Site

Los Angeles, USA

Smart Material Selection

Off the shelf tile colors and custom scatter configuration adds interest without significant cost. A custom color finish on the washing station ties the palette together and gives unexpected freshness to a functional component of the space. Artful linear lighting suggests a running track oval, picking up the language of sport in a subtle way.

EHQ - Hilversum, Netherlands

Keep it Simple

A basic but meaningful graphic wall paint adds an elevated touch without completely covering the architectural palette.

Multi-User Everybody Restroom, PHK

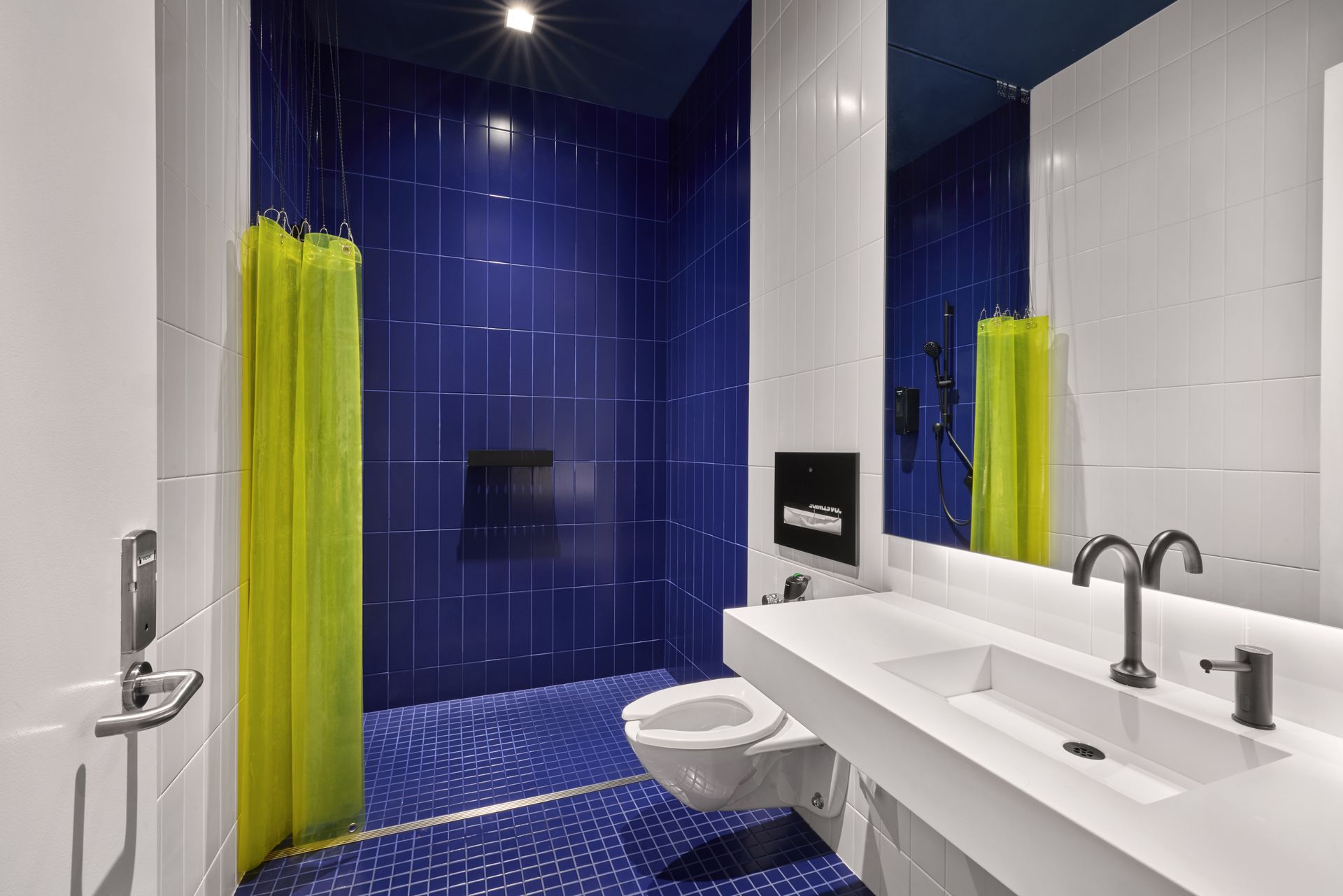

Single-User Everybody Restroom
Everybody means the room is fully accessible and all-gender. This room includes a roll-in shower with seat, grab bars, turning radius clearance, and amenities within reach range. This single-user model is often built where existing facilities don’t include showers or all-gender options.
