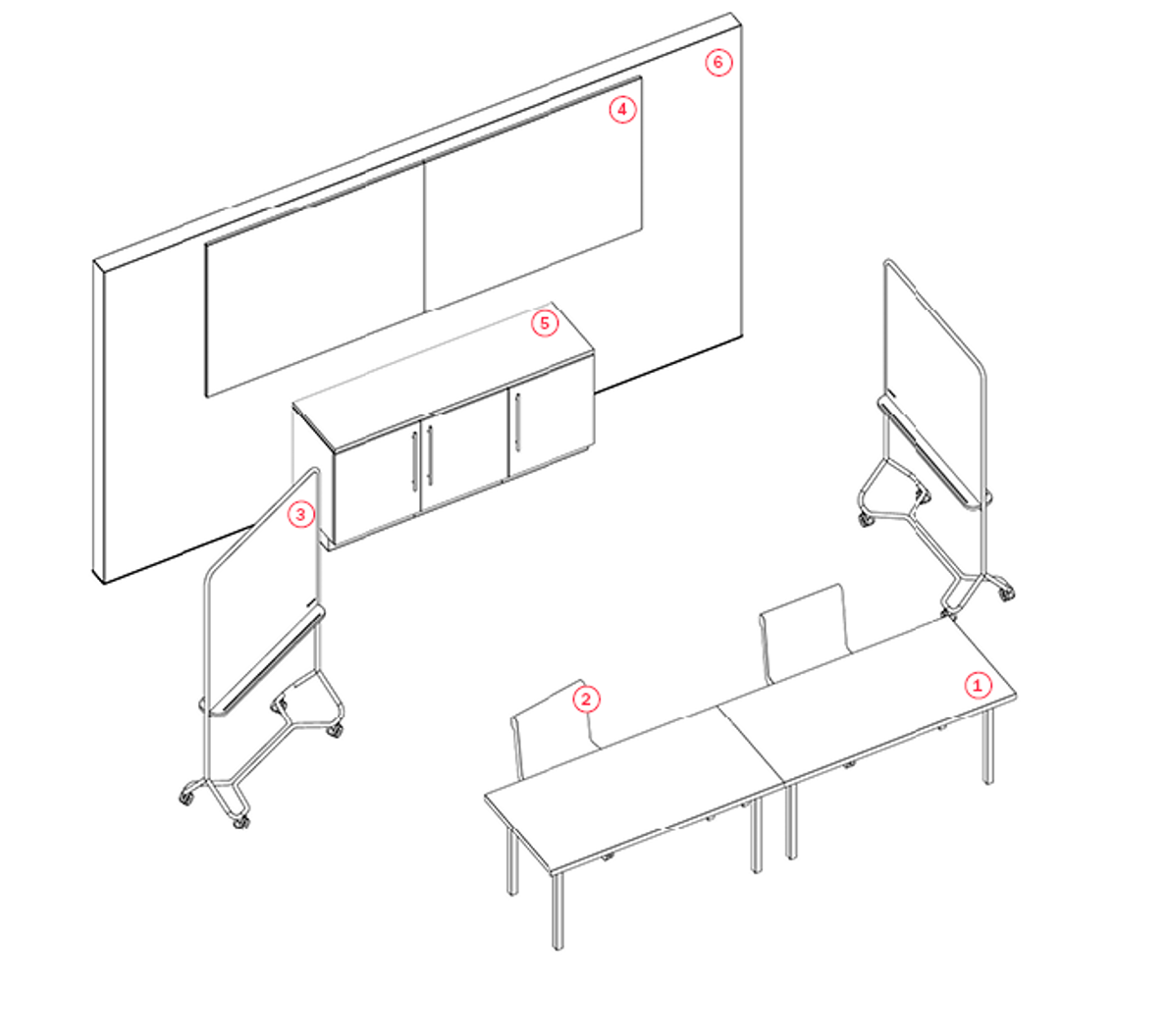

Coach Flex Desk

• Provide appropriate space, furniture, tools and technology for a wide range of body sizes, types and functions. A minimum of 60% of the furniture should be useable without modification by all users

Barrier-free pathways

• For primary circulation with high-traffic, provide 72” (183cm) min. width with a slip-resistant surface
• For paths to all workstations, provide 36” (91cm) min. width
• For other paths, provide 48” (122cm) min. width
• Note: Paths may be reduced to 32" (81cm) for lengths not exceeding 48" (122cm)

Walls and Ceilings

• Open Shopfloor ceiling (no ceiling or walls)

Floors

• Finished shopfloor slab

Furniture

• No lounge furniture within the Flex Desk space

Workstations

• Flexible workstation setup that can be adjusted based on shopfloor MHE (materials handling equipment) reconfiguration
• Position furniture away from columns & with clearance to pull away from desks
• Cable management is required below work surface to accommodate all required cables and cords
• Space Identification and support instructions provided by GPS at each desk

Ergonomic sit-to-stand desk

• Standard size: 30” x 55” (76cm x 140cm)
• Alternate sizes: 30” x 48” (76cm x 12ocm). Local standard may vary by geographic region
• Electric, adjustable height with 27”-46” (69cm-117cm) min. height, typically a 3-phase motor
• Ganging hardware is required for desks to provide stability at top height
• Finishes: Top in solid wood or solid color laminate with exposed MDF core at the edge. Black or white powder coat base
• Ergonomic monitor arm: Adjustable front-to-back and to eye-level height

Ergonomic task chair

• Fast, easy, and intuitive adjustments. Integrated or manual lumbar support
• Seat Height: Adjustable with 15”-22” (38cm-56cm) min. height
• Seat pan: Adjustable with 15”-19” (38cm-48cm) min. depth
• Mesh back
• 5-star hard casters suitable for hard shopfloor concrete flooring
• Height adjustable arms

Moveable writable surface

• Provide (x2) moveable agile whiteboards on castors
• Magnetic, steel, white color, matte finish
• Include tray or cup for markers and erasers

• Environment should support individual work as best as possible, with minimal distractions
• Consider acoustic screening to Coach Flex Desk area to buffer the noise from surrounding MHE
• Consider the location of the Flex Focus on the Shopfloor as a buffer to the surrounding processing noise, project dependent

• (x1) waste bins and (x1) recycle bins per workstations cluster
• Lockable storage for coaches to keep confidential material

Outlets

• Power at all workstations, typically dropped from ceiling
• Power pole housing for cables for safety), use (x1) power pole per (x2-4) workstations (or per local code)

Workstations

• (x4) outlets per desk
• (x2) electrical outlets above desk for easy access laptop to plug-in laptop and peripheral charging
• (x1) electrical outlet below desk for monitor
• (x1) metal trough to conceal wires below surface
• No hardwire data. Users will use Wi-Fi

Lighting

• Range: 35-40 FC (377-430 LUX) at 30” (76cm) above finished floor. Note: Optional task lighting may be consider where light levels are low due to location on the Shopfloor
• Provide low glare and uniform lighting
• Where possible fixtures to be diffused direct/indirect LED
• Coordinate locations with HVAC and MHE

• See Wayfinding section
• Consider wayfinding signage indicating clear paths of travel to key spaces (Entrance, Breakroom, Restrooms etc.)

• Refer to Nike Tech Standards

• For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources
• Clear pathways visually indicated on floor showing clear paths to entrance, amenities and exits
