LOBBY

CORPORATE OFFICES

OVERVIEW

Welcome to NIKE.


This is the first experience for employees and visitors when entering the building, a critical part of the experience and storytelling. Lobbies are always located in the public space outside of the security perimeter and are often combined with the hub. The local team will determine the configuration for the building.

Design Goals

  • A front desk provides a sense of arrival and a clear wayfinding anchor, so visitors know where to go and who to see for assistance. It may not be needed in some smaller locations, or Nike may use the shared lobby in a multi-tenant building.
  • The front desk should be visible from the primary entrance, and it should be clear how to get to the front desk from all entrances. The lobby should provide wayfinding to the rest of the building.
  • With or without a desk, a host, or Experience Team member, provides a human connection by greeting employees, registering visitors, and providing their temporary security badges.
  • The lobby has comfortable places to sit and wait before meeting with someone.
  • An adjacent restroom (preferably an Everybody restroom) that doesn’t require badge access is helpful for visitors before their meeting.
  • The entrance and front desk should be accessible and welcoming to all visitors. See Building Entrance & Exit for related information.
  • Provide a secure storage room for deliveries and guest luggage, etc.
  • Design requires sign-off from these partners to ensure that needs are met: (1) Security for visitor registration, (2) Environmental Health & Safety for ergonomics and accessibility, and (3) Nike Tech (only if performance bar is included).

Ken Griffey Jr., PHK

Key Components

Lobby axonometric

Download PDF and BIM files below


Download Drawings BIM Folder
  1. Entrance
  2. Welcome desk and optional performance bar
  3. Security turnstiles
  4. Seating
  5. Adjacent restroom
  6. Storage


Area:  Varies

Size: Local teams to determine

Capacity: Local teams to determine

Drawings

Branding

Branding within Nike lobbies should be clear and distinct in order to reinforce that you have entered a Nike space. Most often this area is the first opportunity to connect deeply with the Brand story and make a memorable impression. Brand marks should be represented respectfully, with an elevated production and finish. Customized furnishings and artful lighting fixtures can provide discoverable details that demonstrate Nike's commitment to its heritage as well as consideration to guest needs.


Cost guardrail for brand investment: High level

REQUIRED SPECIFICATIONS

  • Clearances
    • Primary circulation: High-traffic paths 72” (152.5cm) min. width. Elsewhere, 48” (122cm) min. width
    • Secondary circulation: Paths between furniture 36” (91.5cm) min. width
    • Clearance at desk: 42” (107cm) min. between the table and the wall for seating
  • Finishes

    Walls

    • Wall type 9: Gypsum wall to deck with insulation
    • Backing in walls for brand installations as needed

    Floors

    • Walk off mats: At exterior entrance
    • Freestanding rugs or mats: Reduce tripping hazard - adhere to floor and use transition edge if over .05” (1.3cm) height
    • Avoid high-gloss finishes and high-contrast patterns
  • Doors
  • Furnishings

    Front desk

    • Location: If possible, provide clear view of the entrance and turnstiles, so staff can assist if needed
    • Accessible transaction counter: 34" (87cm) max. height, 32” (81cm) min. width, 15” (38cm) min. depth. Open below with knee clearance height 29” (74cm) min.

    Furniture

    • Types: Lounge seating for waiting, see front desk
    • Accessibility: Suitable for a variety of body types and comfort preferences; allow for people who use mobility devices (wheelchair, scooter)
    • Finishes: Cleanable, durable, suitable for high traffic

    Window Coverings

    • Roller shades: Manually operable, 3-5% opacity - prevents glare and reduces energy use due to temperature gain and loss
  • Casework and Plumbing

    Booth (Optional)

    • Seat 2-6 people
    • Proportions: Use the required dimensions or approve variances with the design team
    1. Seating: 18” (46cm) max. depth
    2. Table: 36” x 48” (92cm x 122cm)
    3. Table legs: 19” (48cm) min. inboard from the table edge to allow people using mobility devices to work comfortably
    4. Open knee space: 27” (69cm) min. height
    5. Low profile wall mount 4” (10cm) max.
    • Avoid separation panels between booths or ceiling enclosure, these are more costly and give a false sense of privacy
    • Do not install booths on raised platforms
    • At least one booth should be accessible for use by people with mobility assistive technology (wheelchair, scooter). The mobility device should be able to pull up without reducing the primary circulation path width, which may require the table edge to be setback from the walls on each side of the booth. Provide a 36” x 48” (92cm x 122cm) clear floor space
    • Clearances:
    1. Allow someone using a mobility device to pull up without reducing the primary circulation path width. 27" (68.5cm) high knee clearance and a clear floor space on one side of at least 32" x 54" (81.5cm x 137cm). This may require the table edge to be setback from the walls on each side of the booth
    2. Table legs should be at least 19” (48cm) inboard from the table edge to allow people using mobility devices to work comfortably
    • For enclosed booths: Seal gaps for acoustics
    • Angled back is preferred, but not required
    • Durable, cleanable seating materials
  • Acoustics
    • Peak crowds shouldn’t make the space uncomfortably loud and individual conversations should be heard without strain
    • Accommodates background music
    • Noise criteria (NC): 40-45 dBA
  • Equipment
    • Turnstiles
    • For Workplace Security standards, contact your local Design or PM team.
  • Electrical

    Outlets

    • As needed at front desk, screens, music or digital content players
    • Perimeter: Spaced at max. 50’ (15m) for cleaning equipment
    • Front desk: (x2) min. data and (x2) min. power outlets per staff seat. Consult Tech for Performance Bar requirements

    Lighting

    • Range: Calibrate on-site - project team to determine maximum setting within 20-40 FC (215-430 LUX)
    • Switches: On/off. Programmed to remain on during business hours
    • Lighting controls: Height 44"-48" (112cm-122cm)
  • Wayfinding
    • At all entrances: Front desk is either visible or clear directional signs lead there
    • At front desk: Elevators and stairs are visible or clear directional signs lead there
    • Building maps: Locate strategically at building entrances, front desk, and/or elevator lobbies or primary stairways
    • Circulation: Differentiate primary routes with variations in width, flooring, lighting, contrast, color, ceiling height, etc.
  • Branding
    • Nike Swoosh or logo lockup should always be prevalent in Lobby areas.  Size, placement and application to be determined by project team.
    • All painted elements should be easy to clean and resistant to food spills or normal wear.  Low VOC paints should be used whenever possible.
    • Custom lighting should be UL listed or follow local building requirements
    • Wallpaper should be non-vinyl wall covering such as DreamScape Terralon
    • Furniture painted with brand colors should be powdercoated for durability.
    • Custom furniture or upholstery should follow CAL 133 or other local flammability standards
    • Framed graphics are typically Silicone Edge Graphics (SEG’s)

  • Technology
  • Safety and Security
    • For Workplace Security standards, contact your local Design or PM team. EHS standards can be found in Resources

    General

    • Secure perimeter starts after either lobby or hub
    • Security cameras: Capture lobby entrance, visitors face at reception, and turnstiles
    • Security officer not typical

    Turnstiles

    • Card reader to control individual access into the secure perimeter
    • Accessibility: Speed gates preferred over revolving turnstiles for people who use mobility devices. Ensure gates are capable of varied timing to accommodate all users
    • Location: Provide room to cue indoors. Ensure adequate space for approach and use to avoid congestion at doors

Examples

Image Of Campus Site

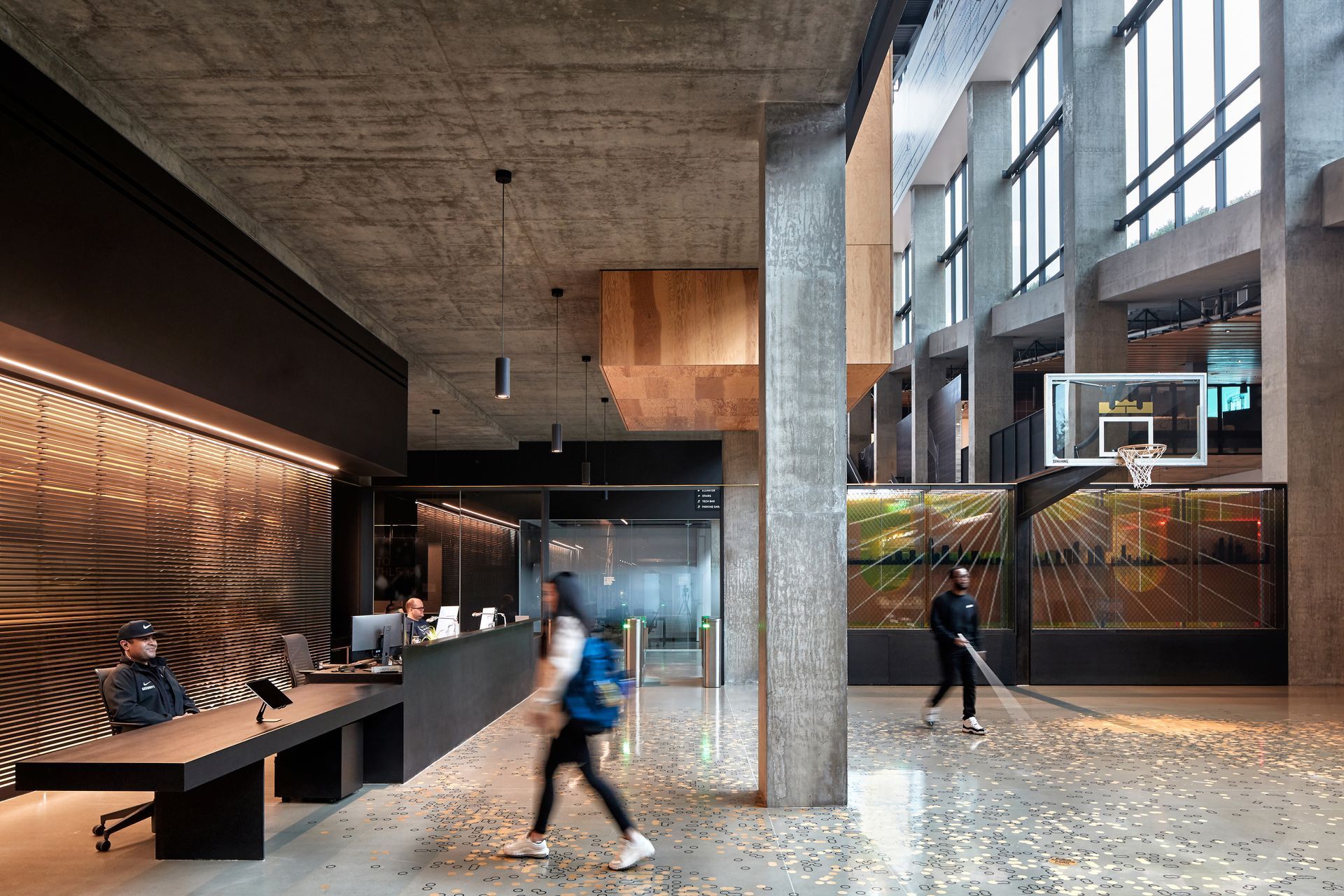

LeBron James, PHK

Reception Desk

Reception desks are scaled to fit the needs of the space. Form and design sets the tone for the experience in the workplace environment, and in some cases can serve to ground the visual language of storytelling.

Image Of Campus Site

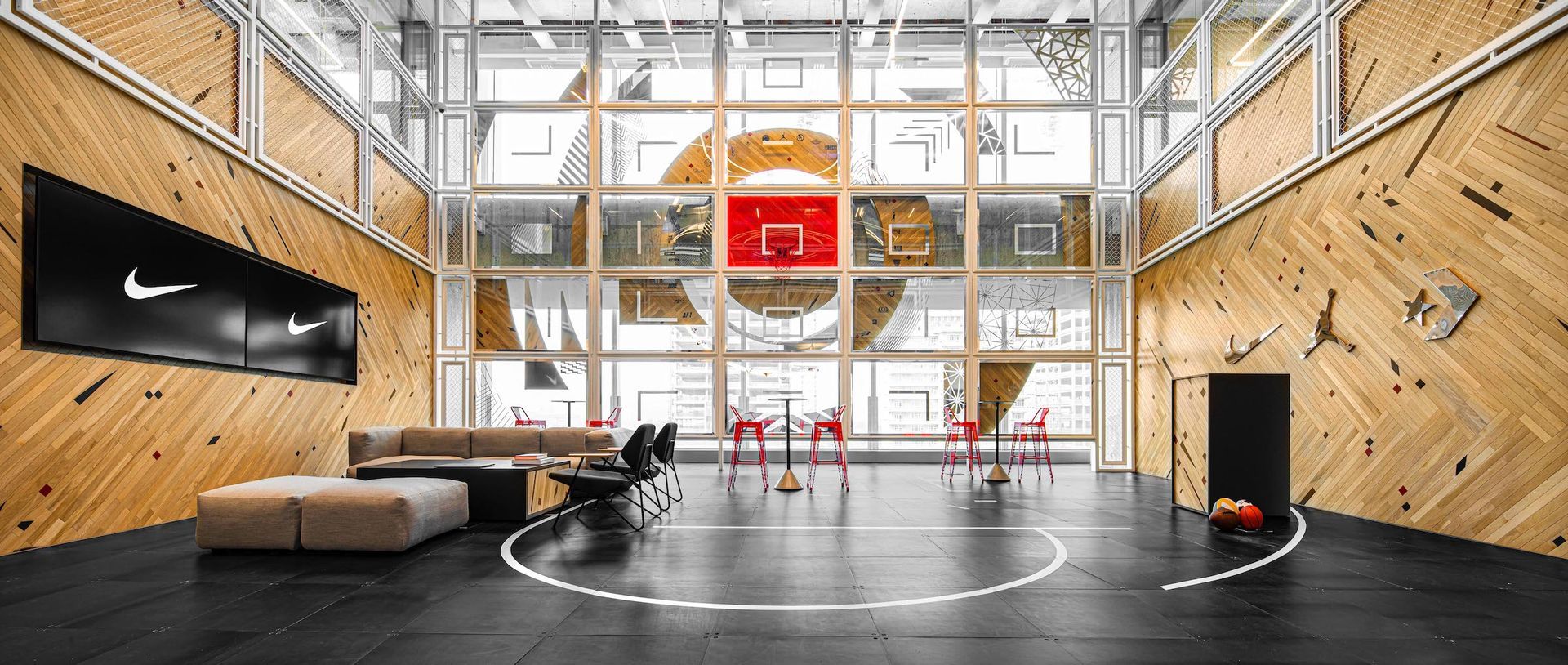

Beijing, China

Statement Moments

At the moment of entry, an immersive basketball court installation is both playable and eye-catching. While still functional, the unconventional design, using numerous forms and materials, generates interest. Be strategic in placement and reserve moments like this for areas with maximum impact.

Image Of Campus Site

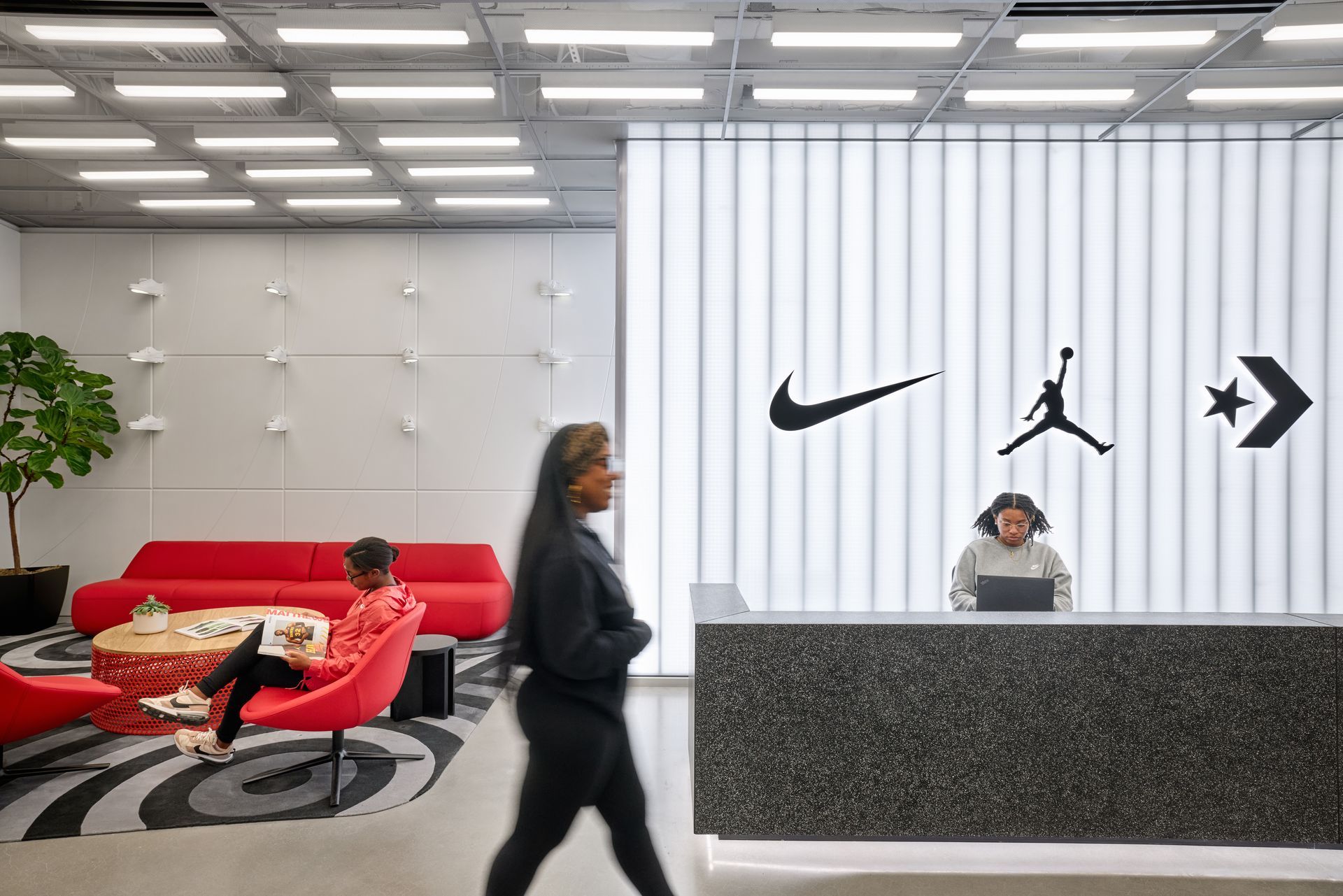

Melbourne, Australia

Logos

Keep it simple. Always use logos relevant to the teams working within the environment. Scale logos so they are easy to see and do not overwhelm the space. Placement of logos should feel comfortable at human eye level.

Image Of Campus Site

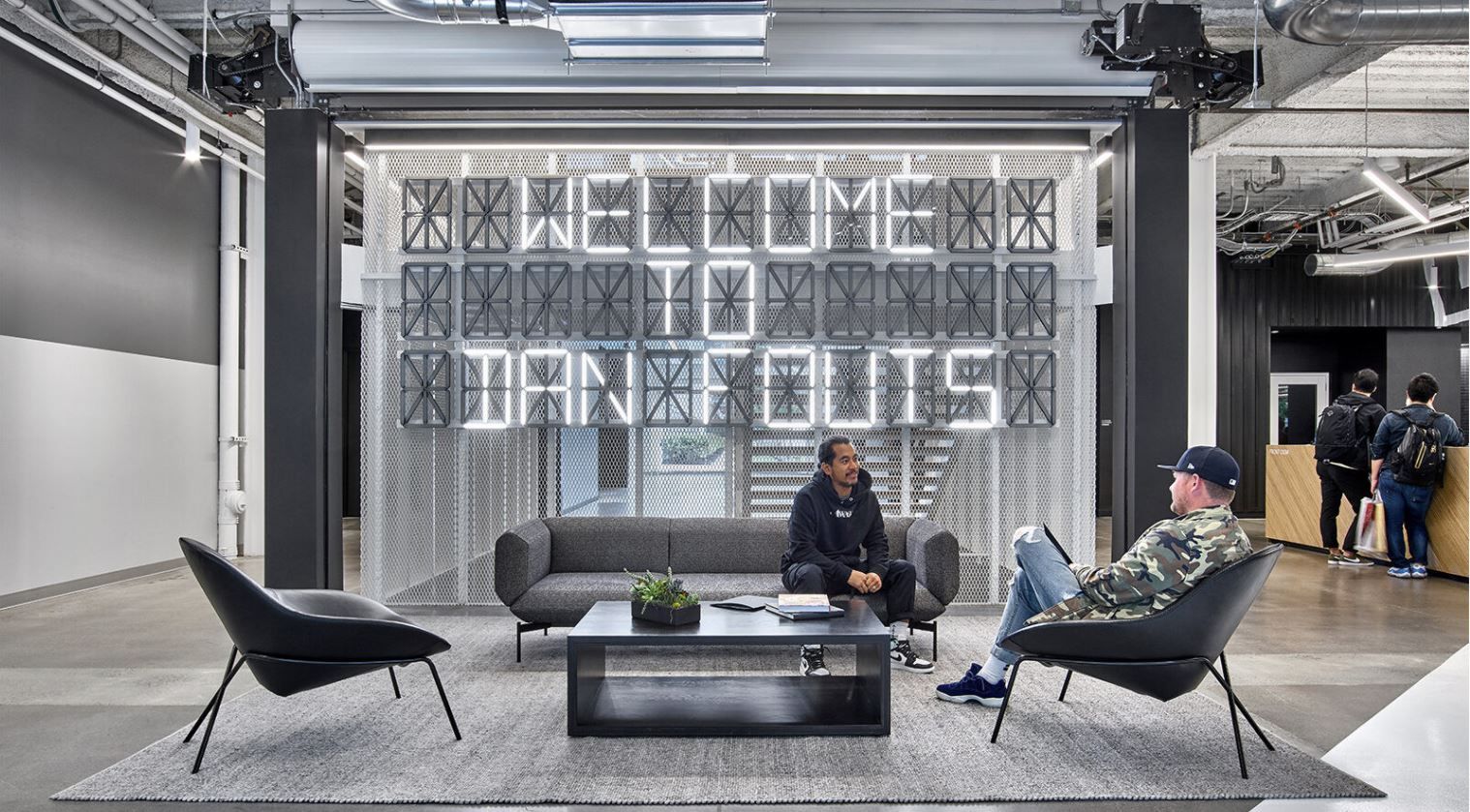

Dan Fouts, PHK

Waiting

Comfortable seating should be provided for guests who are asked to wait. Brand stories within walls, furniture and lighting help to provide an ambience that should feel distinctly Nike.
